NLED Aurora Magician Software

aurora logo wizards hat stars

Most NLED Controllers are compatible with the NLED Aurora Control software. The software is used to create a multitude of patterns and sequences on a computer then, upload them to the compatible controller for the device to run by itself, without a computer connection. The simple GUI makes it easy for anyone to create custom color sequences of any sort and upload them to the controller over the USB connection. Great for any LED project that requires custom color sequences. In addition to standalone sequences, it also supports USB Live Control, send packets over USB to the device for direct control of the outputs. It supports single color, RGB, or RGBW LED configurations.

This software is available free of charge and only works with compatible NLED Controllers. If you are having trouble using the software with your device, please ensure your device's firmware has been updated. Check the device's webpage for the Firmware Update Image and apply it using the instructions at www.NLEDshop.com/bootloader and, ensure you have the most recent version of NLED Aurora Control.

Installation Instructions: This software does not require any installation or third-party downloads. Just download the correct ZIP file for your operating system below, unzip the folder to a location on your hard drive. View readme for special instructions. MacOS requires work around to use the app since it is not from the app store(maybe in the future).

1/23/2024:New release comming soon

Current Supported Devices: Pixel Controller Electron, Pixel Controller Ion, Pixel Controller Quark, Pixel Controller Photon, Pixel Controller Proton, NLED 30 Channel High Current Controller

Future Support: 16-Bit RGBW Lamp Controller, Four Channel Micro, NLED 4 Channel DMX Wash Controller.

NLED Aurora Magician - Windows - v3.2.1 (tested Windows 7 x64 & Windows 10 x64) Download
NLED Aurora Magician - MacOS - v3.2.1 (tested OSX Ventura - SEE README) Download
NLED Aurora Magician - Linux 64-bit - v3.1.1 (tested Ubuntu 64-bit 18.04.04) Download
README Download
Aurora User Manual v3.0.0 (latest) Download / Wiki(outdated)
Aurora Command Manual v3.1.1 (latest) View/Download
NLED Aurora Example Source Code - Javascript GitHub
NLED Aurora Example Source Code - Processing GitHub / Webpage
Windows Command Line - Aurora Protocol Webpage
Serial Control Specifications Manual View/Download
Device Firmware Updates Webpage
NLED Controller Configuration Software Webpage
NLED Pixel Mapper Webpage
NLED AllPixMatrix software Webpage

Legacy Downloads and for older hardware devices not yet supported in version 3.

5/11/2020: Version 2 software has numerous MacOS issues, please check the Readme for instructions. Or use the new version 3.

NLED Aurora Control - Windows v.2i (tested Windows 7 x64 & Windows 10 x64) Download
NLED Aurora Control - MacOS v.2i (tested OSX High Sierra) Download
NLED Aurora Control - Linux 64-bit v.2i (tested Ubuntu 64-bit 18.04.02) Download
Aurora Software Windows 32-bit - v.1j (last stable) Download
Aurora Software Linux 32-bit - v.1j (last stable) Download
Aurora Software MacOS - v.1j (last stable) Download
Previous Versions Downloads Folder
Aurora User Manual v.2i (current) Download / Wiki(outdated)
NLED Aurora Command Manual v.2i (current) View/Download
Manual v.1 View/Download
Other Documents v.1 View/Download
Updated NLED Aurora Command Sheet v.1 View/Download

NLED Aurora Magician Release Video:

NLED Aurora Control software tutorial videos:

Click Thumbnails to Enlarge:

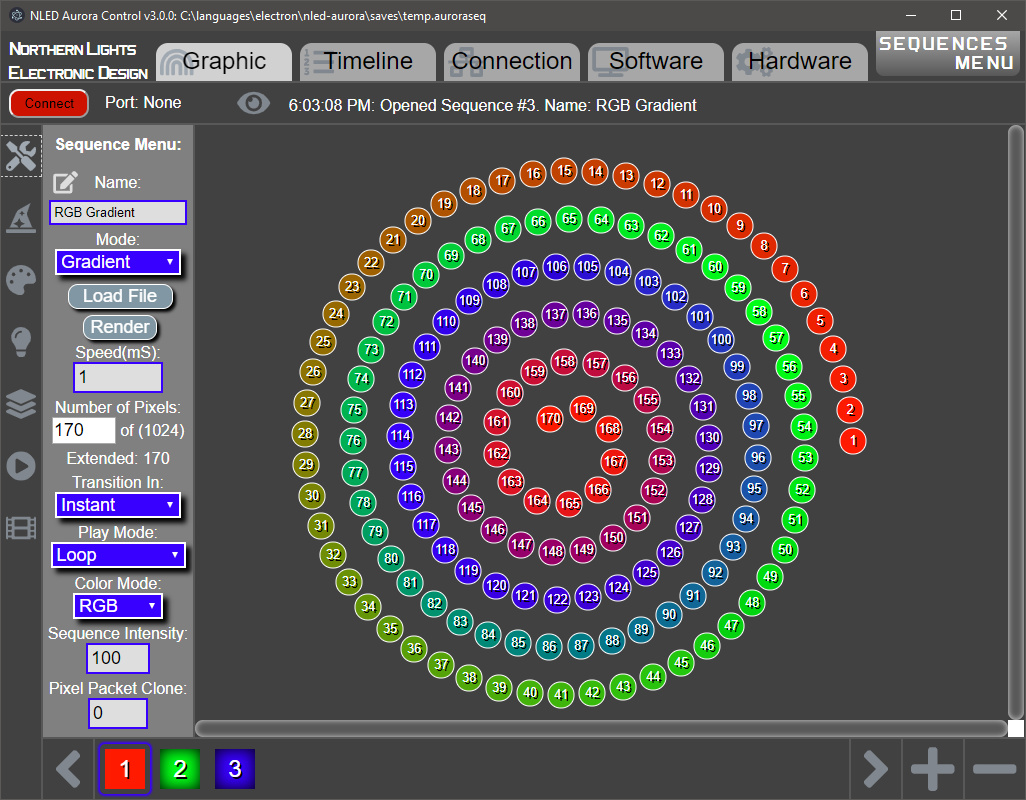

NLED Aurora, Rainbow Sequence NLED Aurora, Linked Sequence NLED Aurora, Rainbow Sequence NLED Aurora, Linked Sequence
