NLED 30 Channel High Current LED Controller

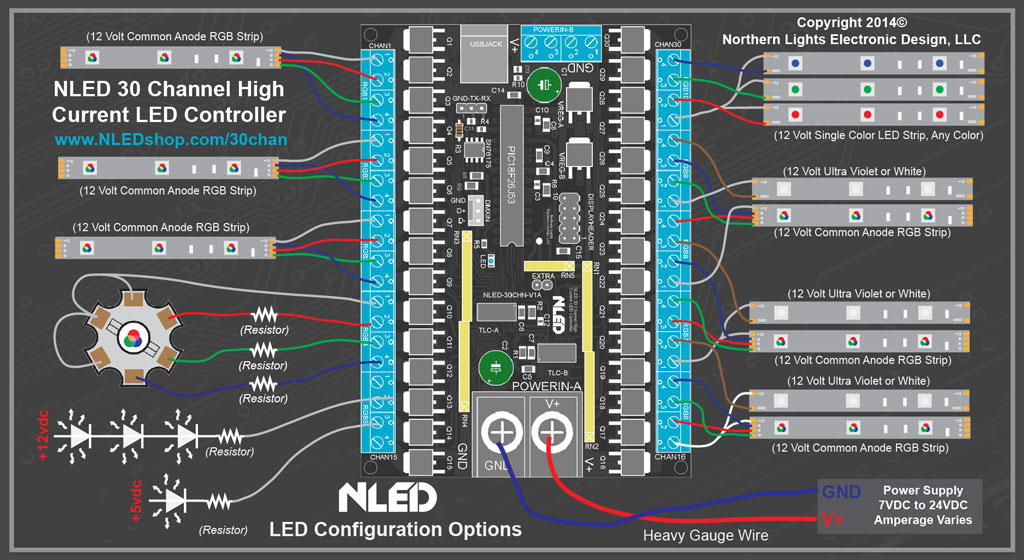

This 30 channel LED controller from NLED is a versatile design with the ability to run powerful stand-alone sequences or can be controlled remotely using USB, DMX-512, or standard TTL serial. It is compatible with an external LED display that is used for displaying device states and for adjusting the device's configuration options such as the DMX address, selecting a stand-alone color sequence, or serial baud rate, among others. The software NLED Aurora Control is the easy-to-use software that can be used to create and upload custom color sequences to the controller, for it to run by itself without any data connections. It supports either 30 single color channels, 10 RGB channels, 7 RGB+W/U.V. channels, or a mixture of single/RGB/RGBW can be controlled. Either of the communication methods can be utilized to control the output channels. Each communication method supports 8-bit or 16-bit data, as the controller offers 12-bit(4096 levels) PWM resolution outputs. Best utilized with 12 volt LED strip(any configuration or color) or other high-wattage type LED configurations as the device supports up to 6A per output channel.

Short Feature List:
  • 30 Channels of High Current Outputs, up to 8A per channel, 75A total
  • Supports 5 to 24 volt LEDs and input voltages
  • 8-Bit or 12-Bit PWM Resolution Outputs with a PWM Frequency of 1.5KHz
  • USB Connectivity for live control and to interface with NLED Aurora Control Software
  • Compatible with 3-Digit External LED Display. Easily adjust configurations and settings
  • TTL Serial Reception, from PC, Arduino, XBee or other serial devices
  • DMX-512 Reception with 7 selectable reception modes, 8-bit and 16-bit types
  • Customizable Stand-Alone Sequences with DMX Master transmission to daisy chain multiple devices
  • Designed and Manufactured in The United States. Includes a Full 3 Year Warranty and Guarantee
  • See Datasheet for full feature list
